Numa Lubrication System
Available from Numa

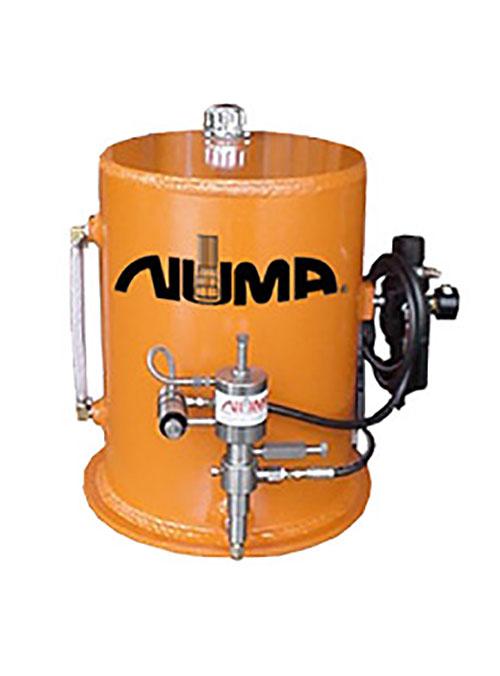

Numa's pneumatic lubricators are positive displacement, air-operated, lubrication systems. They are designed to inject rock drill oil into the air line under positive pressure to ensure the proper amount of oil is supplied to the DTH hammer while drilling.
Numa offers Lubricators with a 15 gallon (57 liter) reservoir for 12" hammers and smaller, or a 45 gallon (170 liter) reservoir for 18" hammers and larger. Both models offer a positive displacement pump that is capable of pumping up to 20 quarts (18.9 liters) per hour at 1,500 PSI (103 Bar). The required supply air pressure is a maximum of 85 PSI (6 Bar) while the supply to output pressure ratio is 17.6:1. The pumps are adjustable for stroke length and number of strokes per minute.
Contact your Numa regional sales representative if you need further information on how Numa Lubricators will make your DTH hammers last longer.
