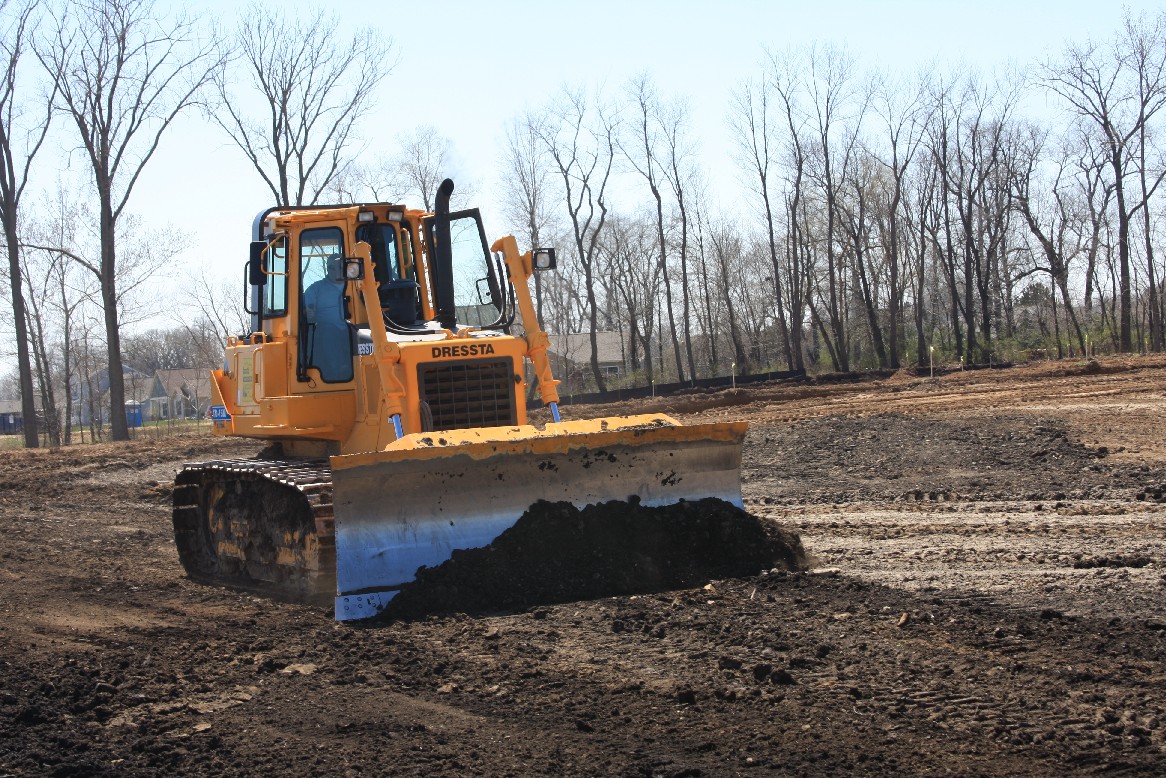

TD15M Extra Crawler Dozer
Available from Dressta North America
The TD15M Extra crawler dozer sits solidly in the mid-size category and is designed to do everything from heavy duty pushing to fine grading with GPS blade control. It is available in four track versions: standard, long track (LT), wide track (WT), and low ground pressure (LGP) and features a 8.3L, fuel efficient engine meeting emission requirements & delivers 190 net hp (179 kW).
Operating the TD15M Extra is easy with a pilot control system, excellent visibility and a single lever joystick control that also manages the transmission speeds. Automatic up and downshifting modes are available to the operator.
Several blade options are available from Dressta: a new 7.45 yd3 (5.7 m3) Semi-U blade, a Angle blade – “C” frame combination of 5 yd3 (3.8 m3) for the standard and long track versions and a 5 yd3 (3.8 m3) 6-Way (Power Angle Tilt) blade for the wide track TD15M. The Straight blade has a 4.7 yd3 (3.6 m3) capacity and is used on the LGP version and a 5.23 yd3 (4 m3) 6-Way (Power Angle Tilt) blade is also available.
Winches and a single shank or Multi-shank ripper is available. Also available are laser or GPS blade control systems, slopers and other attachments.
The standard version of the TD15M Extra has an operating weight of approximately 44,335 lb (20 110 kg), Long Track 44,665 lb (20 260 kg), Wide Track 45,779 lb (20 765 kg), Low Ground Pressure of 46,451 lb (21 070 kg),
