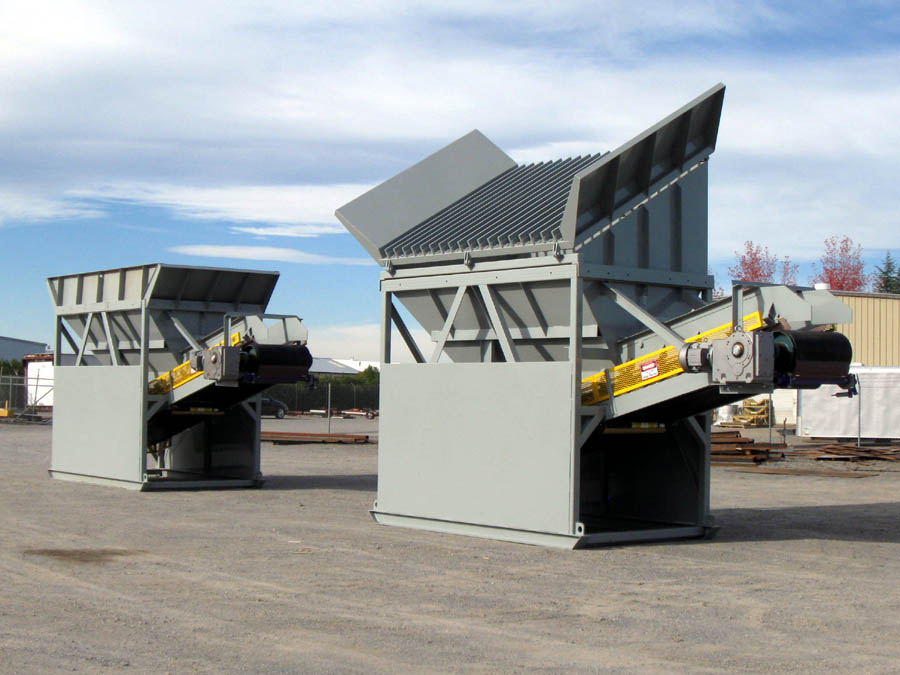

Model 101-36G Front End Loader Hopper with Belt Feeder & Sloping Grizzly
Available from Rock Systems, Inc.
Rock Systems Front End Loader Hopper with Belt Feeder, Model 101-36G, complete as follows:
a) 14'-6" wide hopper opening with 17 ton storage capacity (based on 100 lbs/cu. ft. material).
b) Self-cleaning sloping grizzly with nominal 6" spacing to remove oversize material; grizzly bars constructed of 1" x 5" flatbar; framework constructed of square tubing with steel plate and reinforcing ribs; grizzly bars manually tip. Hydraulic tip available.
c) Hopper constructed of 1/4" thick steel plate with reinforcing and 6" x 4" rectangular tubing.
d) Heavy duty semi-portable support structure with skid frame.
e) Radial discharge gate.
f) 36" wide roller belt feeder with inverter duty 15 h.p. gearmotor drive; Dodge 16" diameter rubber lagged head pulley mounted on 3-7/16" diameter 1045TGP shafting and Dodge SCM pillow block bearings; head pulley nip guards; Dodge 8" diameter snub pulley mounted on 1-7/16" diameter 1045TGP shafting and Dodge SCM pillow block bearings; Dodge 16" diameter self-cleaning tail pulley mounted on 2-7/16" diameter 1045TGP shafting and Dodge SCM pillow block bearings; screw take-up assemblies; tail terminal guard; CEMA "C" 5" diameter conveyor idlers mounted on close centers; heavy duty 4 ply conveyor belting vulcanized endless with 1/4" x 1/16" rubber covers.
g) Full length skirtboards with REMA Skirt 50 adjustable rubber flashing and nip guards.
h) Flexco Rockline belt scraper with urethane blade.
