Model 101-30R RAP Bin Feeder

Product Details

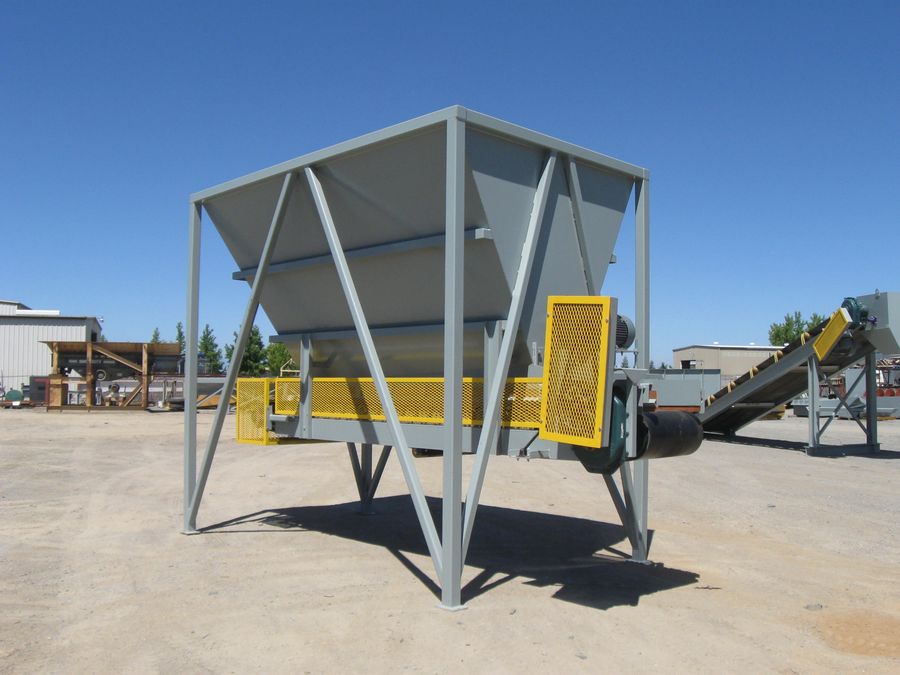

Rock Systems Model 101-30R RAP bin feeder complete as follows:

a. 7’-8" wide x 13’ long hopper opening constructed from 1/4” thick steel plate with square tube reinforcing at the hopper top and angle iron reinforcing at the hopper mid-section and bottom section; self-relieving tapered hopper bottom opening from 16" to 22" to minimize bridging; full length skirtboards with 3/4" x 6" adjustable rubber flashing to prevent leakage between hopper bottom and belt feeder; adjustable discharge gate with hand crank to control material flow from each hopper.
b. 30" wide x 15’-4” long belt feeder with fixed speed 7.5 h.p. electric motor, Dodge TAII5215H40 shaft mount speed reducer, v-belt drive and OSHA drive guard; Dodge 12" diameter rubber lagged head pulley mounted on Dodge 2-15/16" SCM pillow block bearings; Dodge 12" diameter self-cleaning tail pulley mounted on Dodge 2-3/16" SCM pillow block bearings; screw take-up assemblies; OSHA tail terminal guard and side nip guards; CEMA "C" flat belt idlers with 5" diameter rolls mounted on close centers; CEMA "C" return idler; 3 ply vulcanized endless conveyor belting with 3/16" x 1/16" rubber covers. Belt speed setup for 50 fpm.
c. Steel fabricated structure constructed of square tubing and 1/2” thick base plates.
d. One rust inhibitor prime coat and one finish coat gray paint for all equipment; one finish coat safety yellow paint for all guarding.
