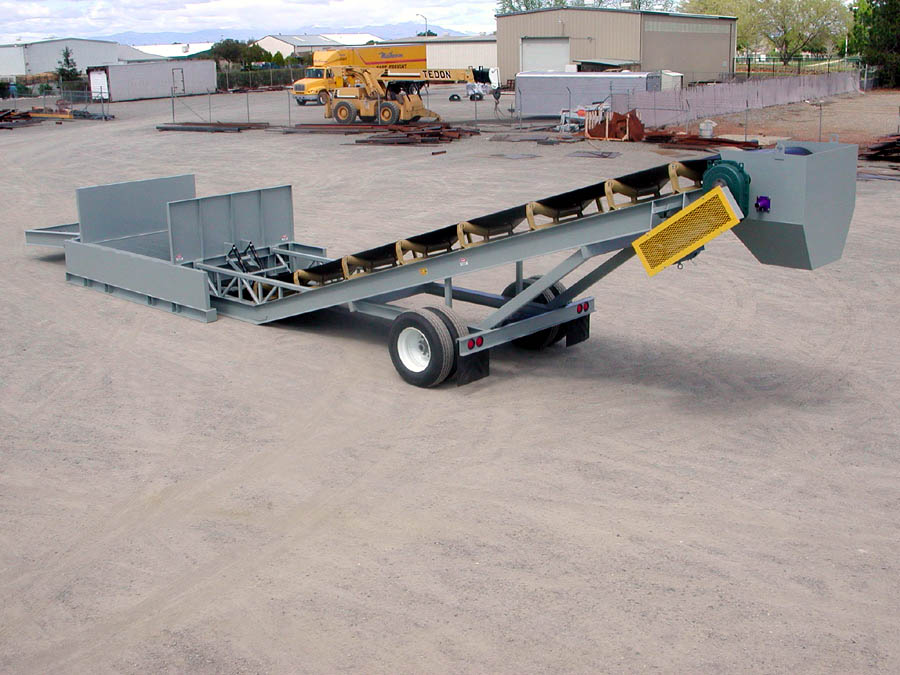

Model P104-LP Portable Low Profile Truck Drive-Over Unloader

Available from Rock Systems, Inc.
Product Menu
View Company Profile View all Products

Product Details

Rock Systems Heavy Duty Portable Low Profile Truck Drive-Over Unloader, Model P104-LP complete as follows:

a) Low profile truck dump 7’-8” long x 9’-8 1/2” wide x 37” tall complete with hopper and adjustable skirtboards; drive-over grates; adjustable slide gate and enclosed side boards. Hopper and drive-over grates remove for service.
b) 48” wide discharge conveyor complete with 40 h.p. electric motor, Dodge TAII6307H25 shaft mount reducer with internal backstop; v-belt drive and OSHA drive guard; 20” rubber lagged head pulley; 8” snub pulley; 12” self-cleaning tail pulley with screw take-up assemblies; Dodge pillow block bearings; 3 ply conveyor belting with 3/16” x 1/16” rubber covers; CEMA “C” flat belt idlers mounted on close centers at load point followed by CEMA “C” 20 degree troughing idlers mounted on 4’ centers; CEMA “C” return idlers mounted on 10’ centers with return idler guards; vertical curve with hold down wheel; Flexco Rockline belt scraper; steel fabricated discharge hood with AR liners. 250 feet per minute belt speed.
c) Steel fabricated trailer frame with single axle chassis, pneumatic tires, brakes, lights, mud flaps and 5th wheel pin.
d) One rust inhibitor prime coat and one finish coat gray paint for all equipment; one finish coat safety yellow paint for all guarding.
e) Electric motor control panel pre-wired to the electric motor.
