2025 Earthworm Conveyors 36X80

2025 Earthworm Conveyors 36X80

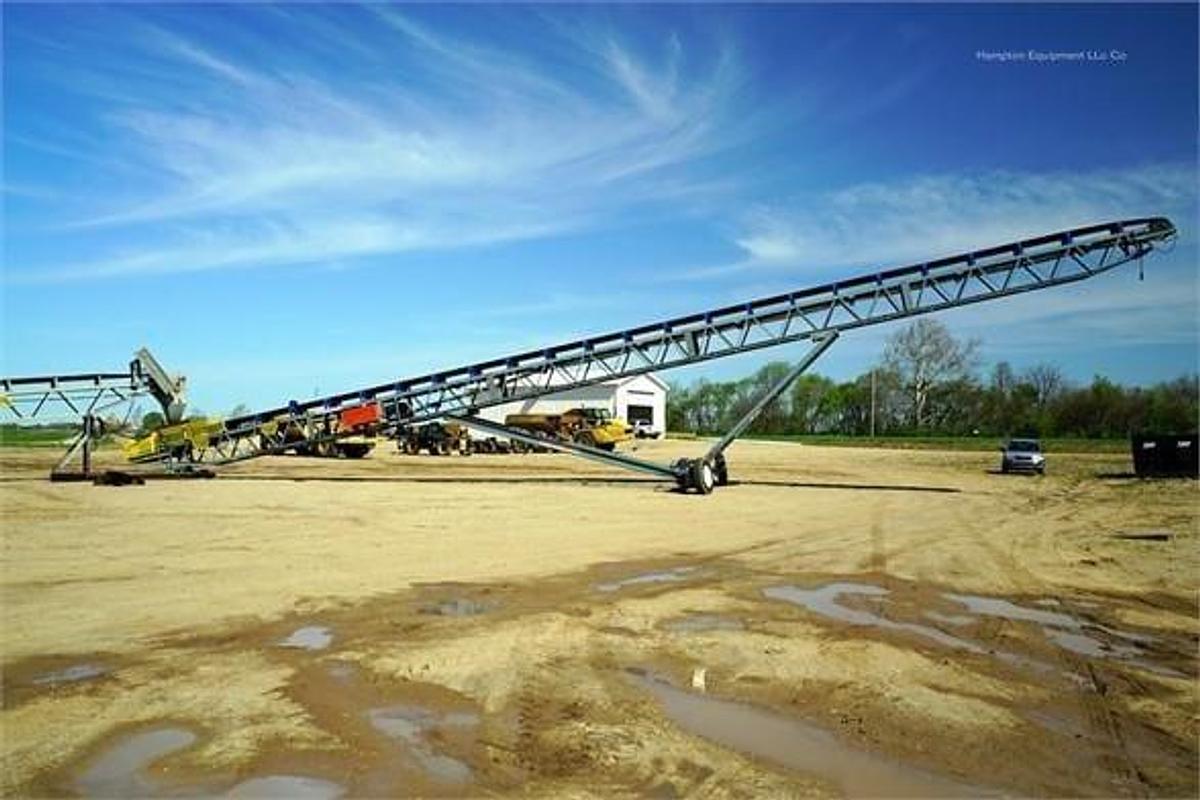

2025 EARTHWORM CONVEYORS 36X80 For Sale in Fort Wayne, Indiana at www.hamptonused.com. PIT PORTABLE RADIAL STACKER

36” x 80’
• 36” Deep Truss, 3x3x1/4 Cord Angle, 2x2x1/4 Lattice
• Heavy Duty Undercarriage, 8x8 Tubing Axle, 20” Regrooved Tires
• Lagged head 16” Dia., 2 15/16” Shaft & Ball Bearing
• Winged Tail, 2 15/16” Shaft & Ball Bearings w/Screw Take-ups
• World Wide #5 Drive, Motor Mount, Belt Guard
• 20 hp, TEFC, 1800 RPM
• Pioneer, 5” x 35 deg., CEMA C Top Rollers on 48” Centers
• Pioneer, 5” Returns w/Brackets, 10’ Centers
• Belt, Rubber, 2 Ply, 220 PIW, 3/16 x 1/16 Cover
• 48” Load Zone w /Skirt Rubber
• Pivot Plate, Tow Hook
• Tail Guard
• Primed & Painted, Tool Steel Gray, Unless Specified Differently.

At Earthworm Conveyors, we design and manufacture reliable material handling equipment, including the 2025 Earthworm Conveyors 36x80, to improve your business operations. This pit-portable radial stacker features a robust design, including a 36-inch deep truss, heavy-duty undercarriage with regrooved tires, and high-quality components such as lagged head pulleys, winged tails, and screw take-ups for enhanced durability and performance. We use American-made parts like Pioneer rollers, 2-ply rubber belts, and TEFC motors to ensure reliability, while offering features such as a load zone with skirt rubber, a pivot plate, tow hook, and safety guards for added efficiency and safety. In addition to manufacturing conveyors in any width or length, we provide financing, transport, and worldwide shipping to make it easy for your business to access quality products when you need them. Whether it's radial stackers, transfer conveyors, or overland conveyors, we deliver innovative and dependable solutions anywhere in the USA, proudly built with American materials.
