2025 Earthworm Conveyors 36X110

2025 Earthworm Conveyors 36X110

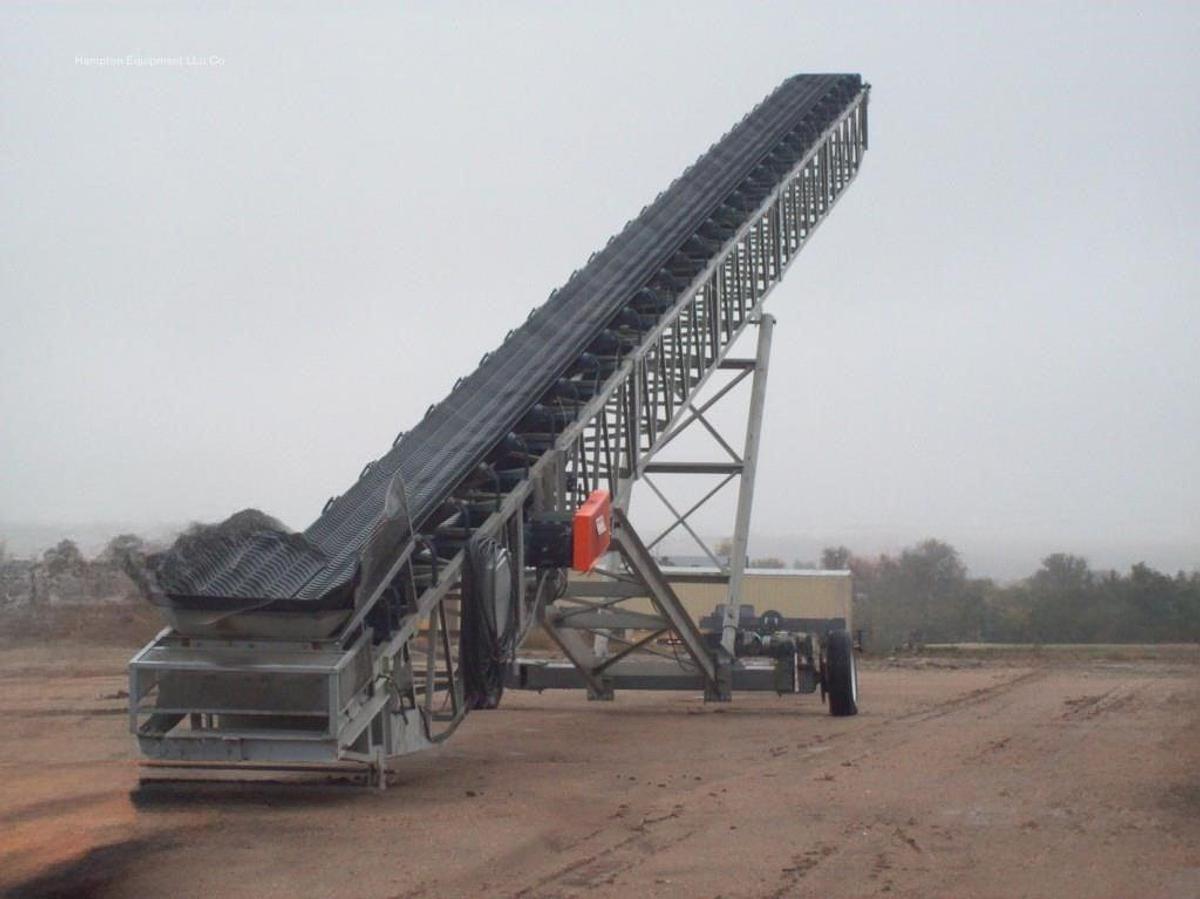

2025 EARTHWORM CONVEYORS 36X110 For Sale in Fort Wayne, Indiana at www.hamptonused.com. PIT PORTABLE RADIAL STACKER

36” x 120’ 1200 TPH
• 48” Deep Truss, 3x4x5/16 Cord Angle, 2x2x1/4 Lattice
• Low profile tail, (Approximately 42”)
• Heavy Duty Undercarriage, 10x10 Tubing Axle, 20” Tires Regroved
• Wrap type mid drive
• Lagged head 18” Dia., 2 15/16” Shaft & Ball Bearing
• Winged Tail, 2 15/16” Shaft & Ball Bearings w/Screw Take-ups
• World Wide /WW #6-15 Drive, Motor Mount, Belt Guard
• 75 hp, TEFC, 1800 RPM, 230/460 volt
• Pioneer, 5” x 35 deg., CEMA C Top Rollers on 48” Centers
• Pioneer, 5” Returns w/Brackets, 10’ Centers
• Belt, 2 Ply, 220 PIW, Chevron V-Cleat
• 36” Receiving Hopper w Skirt Rubber, extended sides
• Pivot Plate, Tow Hook, weight box (weight not included)
• Tail Guard
• Primed & Painted, Tool Steel Gray, Unless Specified Differently.

At Earthworm Conveyors, we specialize in manufacturing high-performance material handling equipment, like the 2025 Earthworm Conveyors 36x110, to help your business efficiently move materials. Our pit-portable radial stacker features a robust 48-inch deep truss, wrap-type mid drive, heavy-duty undercarriage, and premium components such as lagged head pulleys, winged tails, and screw take-ups for maximum durability and reliability. Built with American parts and materials, the conveyor is designed with a 75 HP TEFC motor, 2-ply Chevron V-Cleat belts, Pioneer CEMA rollers, and a low-profile tail for top-tier performance. We also offer value-added services like financing, worldwide shipping, transport, and custom manufacturing of conveyors in any width or length to meet your specific operational needs. Whether you’re looking for radial stackers, transfer conveyors, or overland conveyors, we deliver industry-leading solutions proudly made in the USA to keep your business moving forward.
