2025 Earthworm Conveyors 36X100

2025 Earthworm Conveyors 36X100

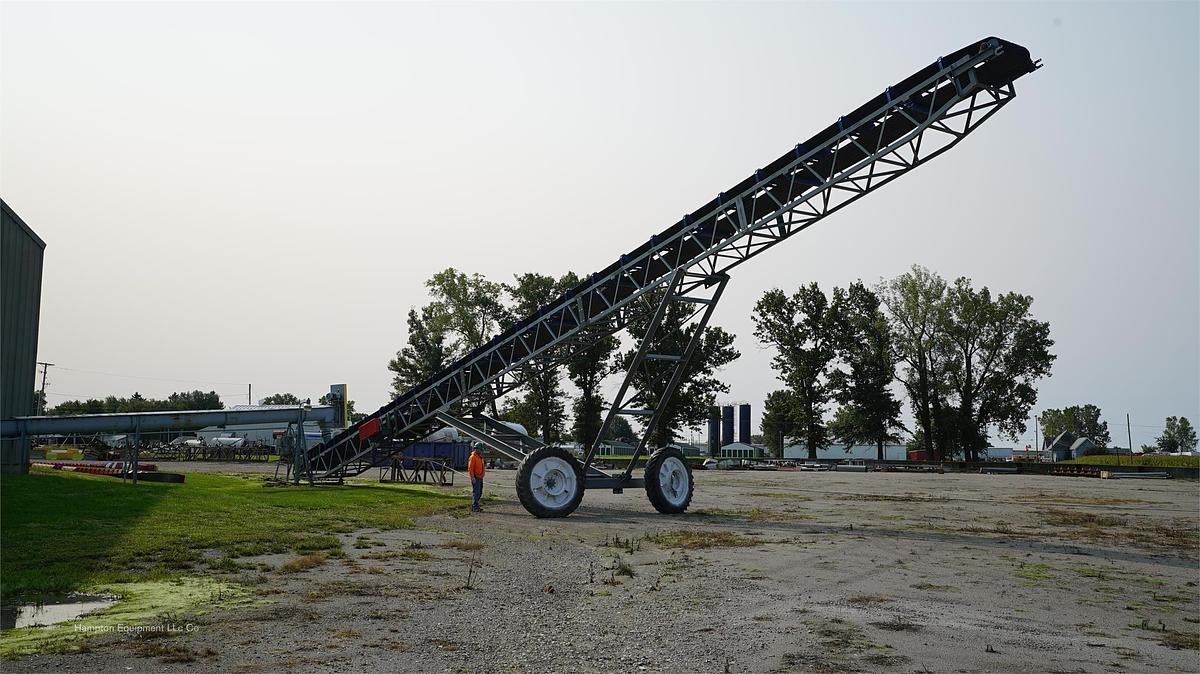

2025 EARTHWORM CONVEYORS 36X100 For Sale in Fort Wayne, Indiana at www.hamptonused.com. 36” x 100’ EARTHWORM GRAIN CONVEYOR

• 36” Deep Truss, 3x4x 5/16 Cord Angle, 2x2x1/4 Lattice
• Heavy Duty Undercarriage, 10x10 Tubing Axle, 20” Tires & Rims (used)
• Wrap type mid drive with 14” Snub 2 15/16 Shaft & Roller Bearings
• Lagged head 16” Dia., 2 15/16” Shaft & Roller Bearing
• 14” Winged Tail, 2 15/16” Shaft & Roller Bearings w/Screw Take-ups
• 16” Plain Drum Discharge Pulley, 2 15/16 Shaft & Roller Bearings
• World Wide #5-15 Drive, Motor Mount, Belt Guard
• 15 hp, TEFC, 1800 RPM, 230/460 volt
• Pioneer, 5” x 35 deg., CEMA C Top Rollers on 48” Centers
• Pioneer, 5” Returns w/Brackets, 10’ Centers
• Belt, Rubber, 2 Ply, CHEVRON V-Cleat
• 48” Load Zone w/Skirt Rubber
• Pivot Plate, Tow Hook
• Tail Guard
• Primed & Painted, Tool Steel Gray

At Earthworm Conveyors, we pride ourselves on manufacturing durable and versatile material handling solutions, including the 2025 Earthworm Conveyors 36x100 Grain Conveyor. This unit features a 36” x 100’ conveyor with a 36” deep truss constructed from heavy-duty materials, including 3x4x5/16 cord angle and 2x2x1/4 lattice for optimal strength and durability. Designed for efficiency, it comes equipped with a heavy-duty undercarriage with a 10x10 tubing axle, 20” tires and rims, a wrap-type mid-drive with a 14” snub pulley, roller bearings, and screw take-ups for reliable performance. Additional features include a chevron V-cleat rubber belt, Pioneer CEMA rollers, skirt rubber in the 48” load zone, and a pivot plate with a tow hook for portability. As manufacturers based in the USA, we offer customizable solutions for radial stackers, transfer conveyors, truss frame conveyors, grasshopper conveyors, overland conveyors, and feeder conveyors of any width or length, with nationwide delivery available.
